Description

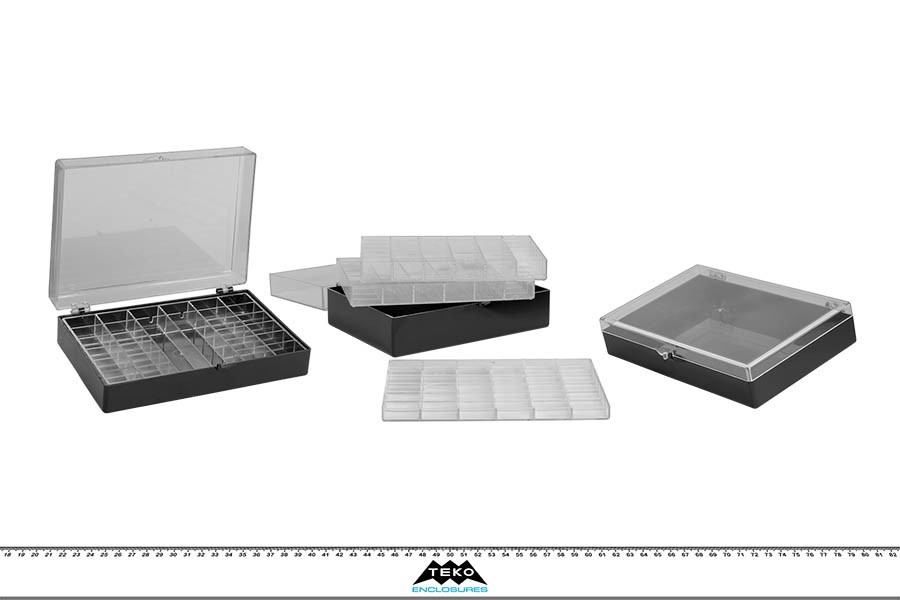

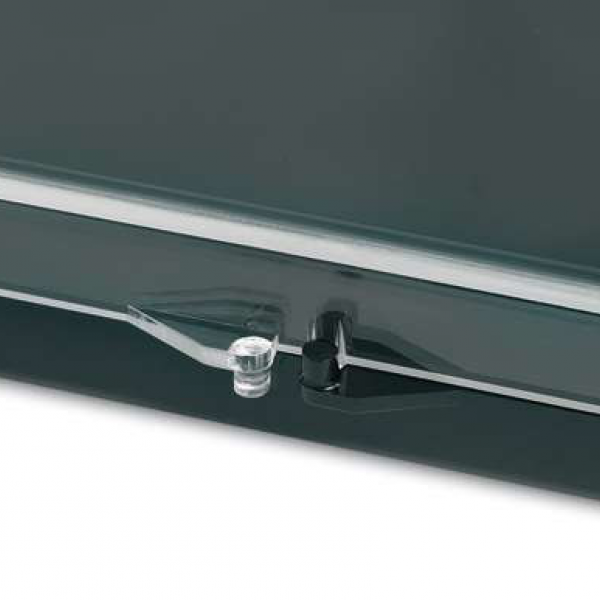

Series of small storage boxes with hinged transparent lid and black bottom. According with the internal dimensions could be utilised up to 3 trays that can be inserted inside, which are available in 20, 28 and 36 sections (Mod. SCA). They are moulded in polystyrene. Glossy surfaces finish.
Details
Products
| |
|---|---|

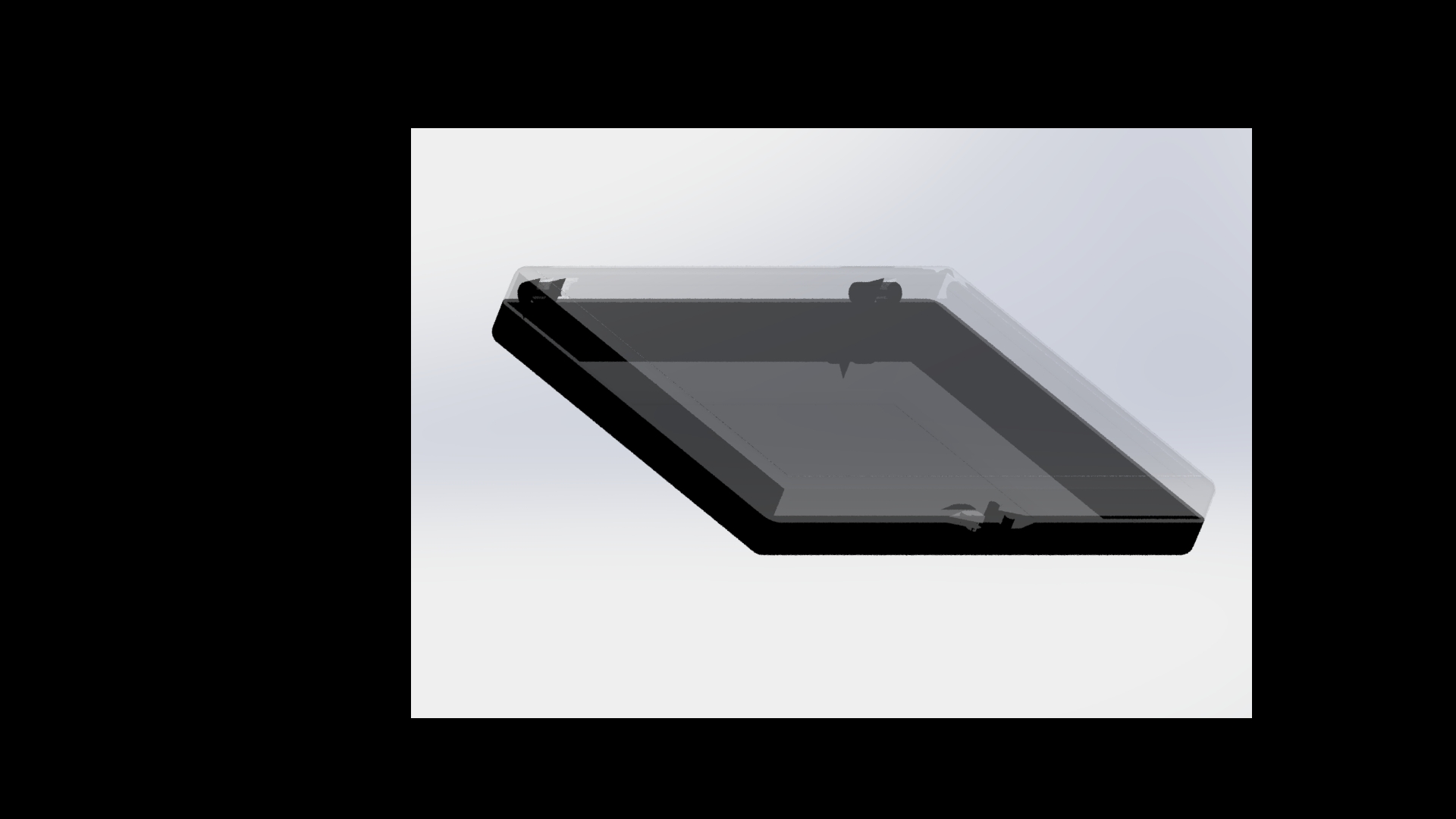

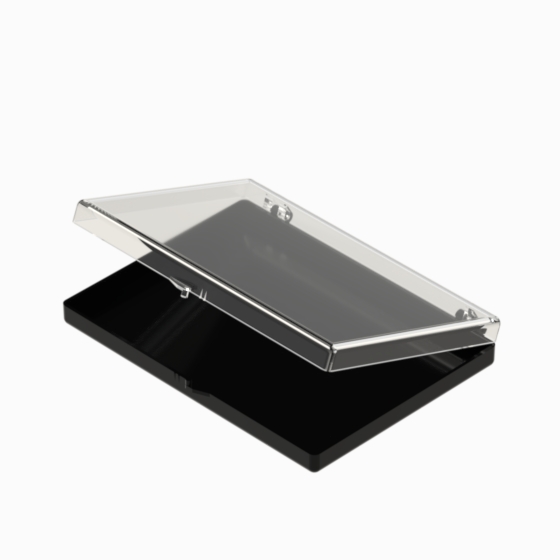

| Model | SC20.9 |
| L (mm) | 180 |
| W (mm) | 140,5 |
| H (mm) | 26 |
| Color (Ral) |
9004 |
| Material | N 1910 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

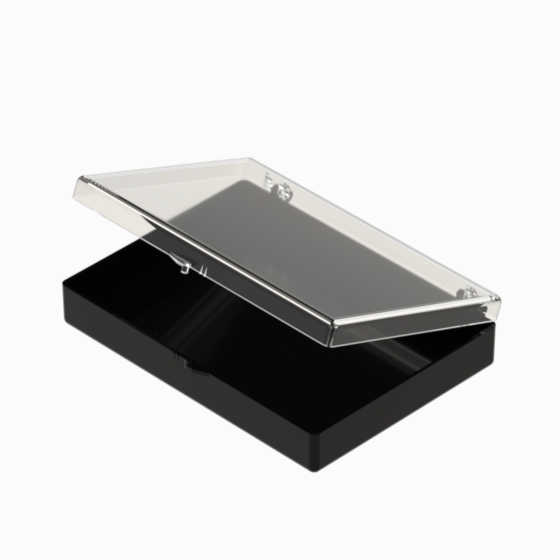

| Model | SC32.9 |
| L (mm) | 180 |
| W (mm) | 140,5 |
| H (mm) | 38 |
| Color (Ral) |
9004 |
| Material | N 1910 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
|
| |

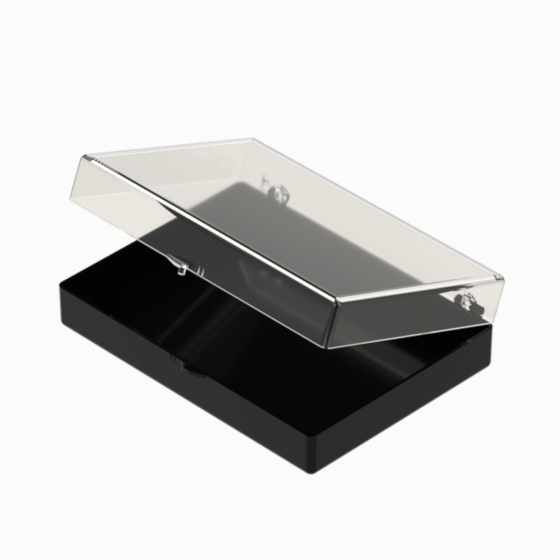

| Model | SC44.9 |
| L (mm) | 180 |
| W (mm) | 140,5 |
| H (mm) | 50 |
| Color (Ral) |
9004 |
| Material | N 1910 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
|
| |

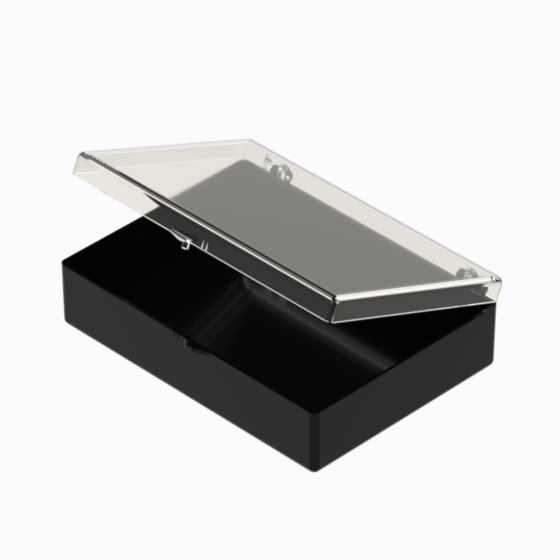

| Model | SC45.9 |
| L (mm) | 180 |
| W (mm) | 140,5 |
| H (mm) | 51 |
| Color (Ral) |
9004 |
| Material | N 1910 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
|
| |

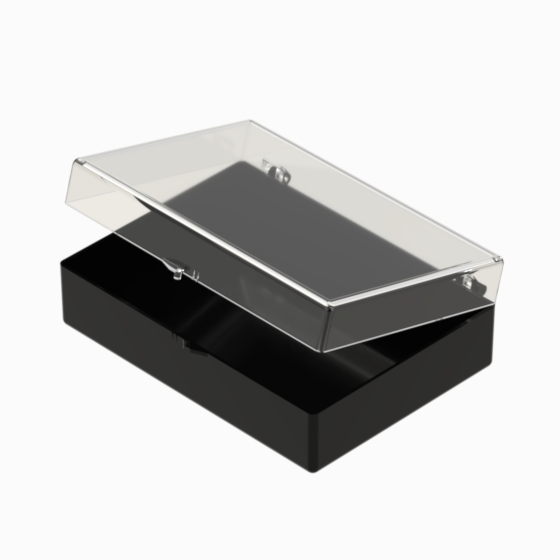

| Model | SC57.9 |
| L (mm) | 180 |
| W (mm) | 140,5 |
| H (mm) | 63 |
| Color (Ral) |
9004 |
| Material | N 1910 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
|
| |

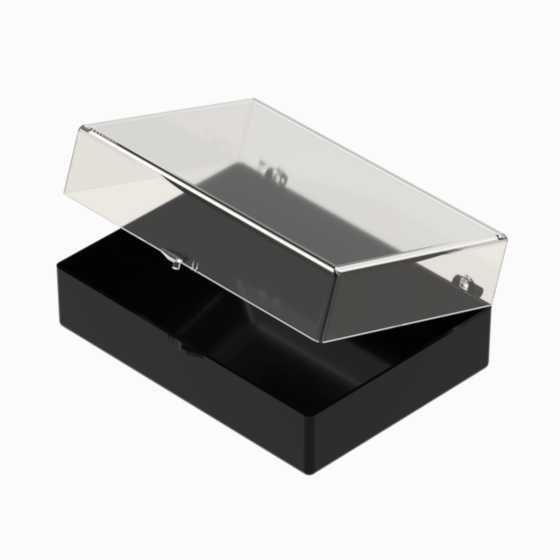

| Model | SC70.9 |
| L (mm) | 180 |
| W (mm) | 140,5 |
| H (mm) | 76 |
| Color (Ral) |
9004 |
| Material | N 1910 |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

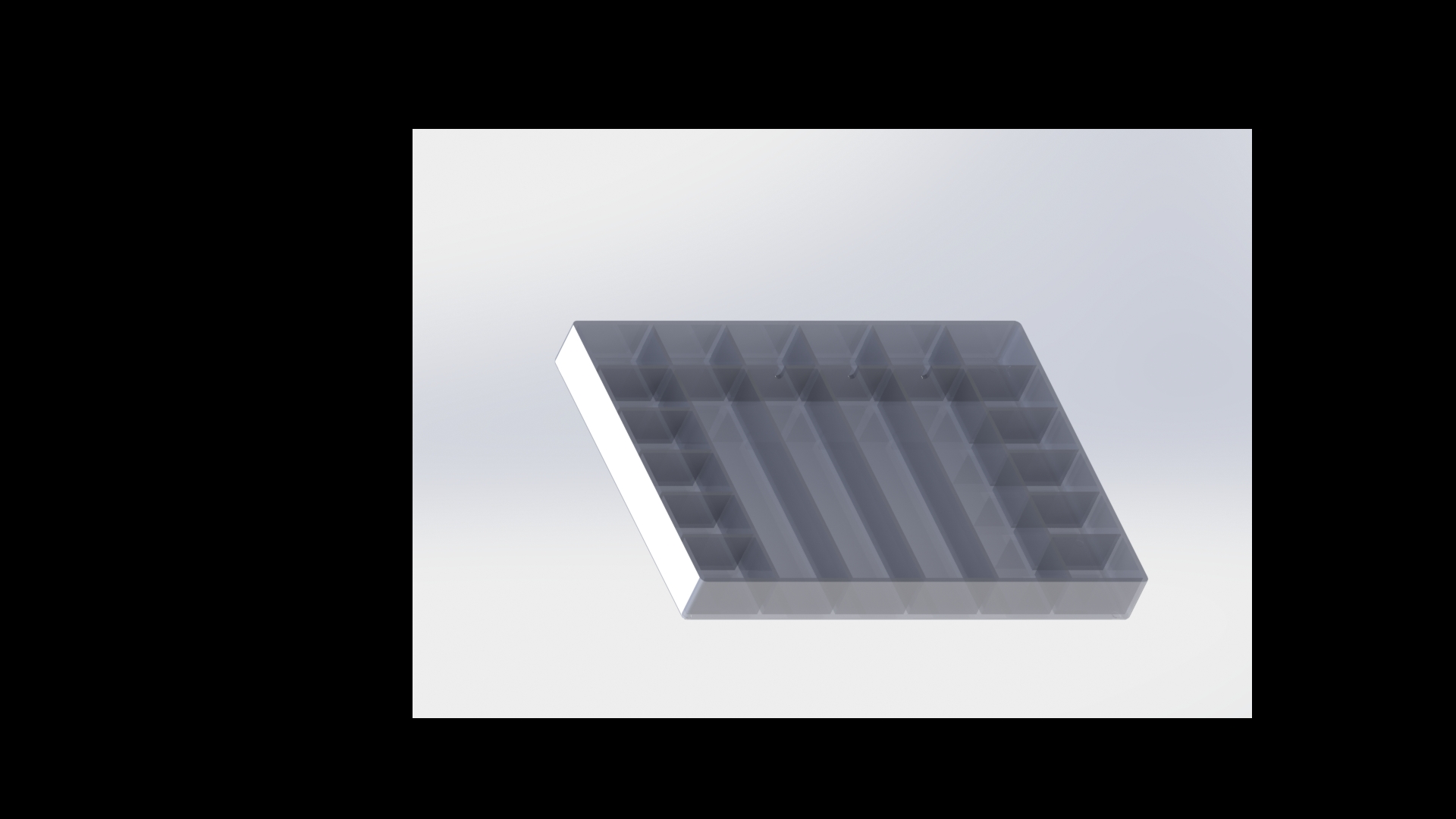

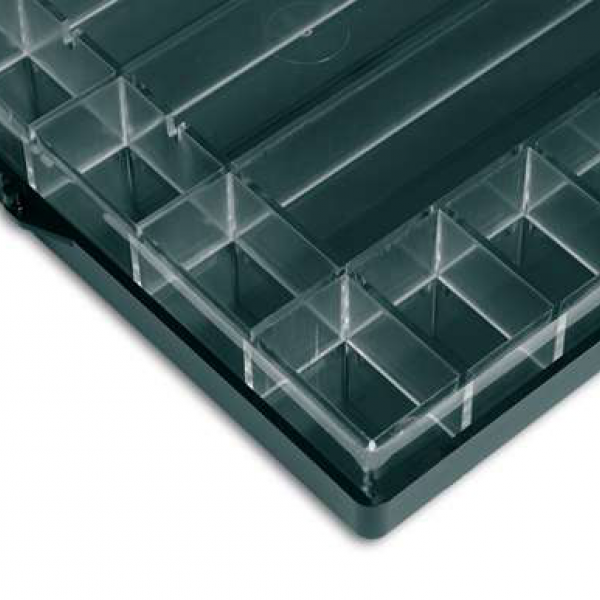

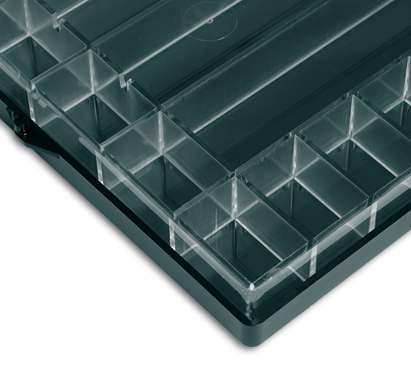

| Model | SCA20.0 |
| L (mm) | 175 |
| W (mm) | 125 |
| H (mm) | 20 |
| Color (Ral) |
- |
| Material | |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

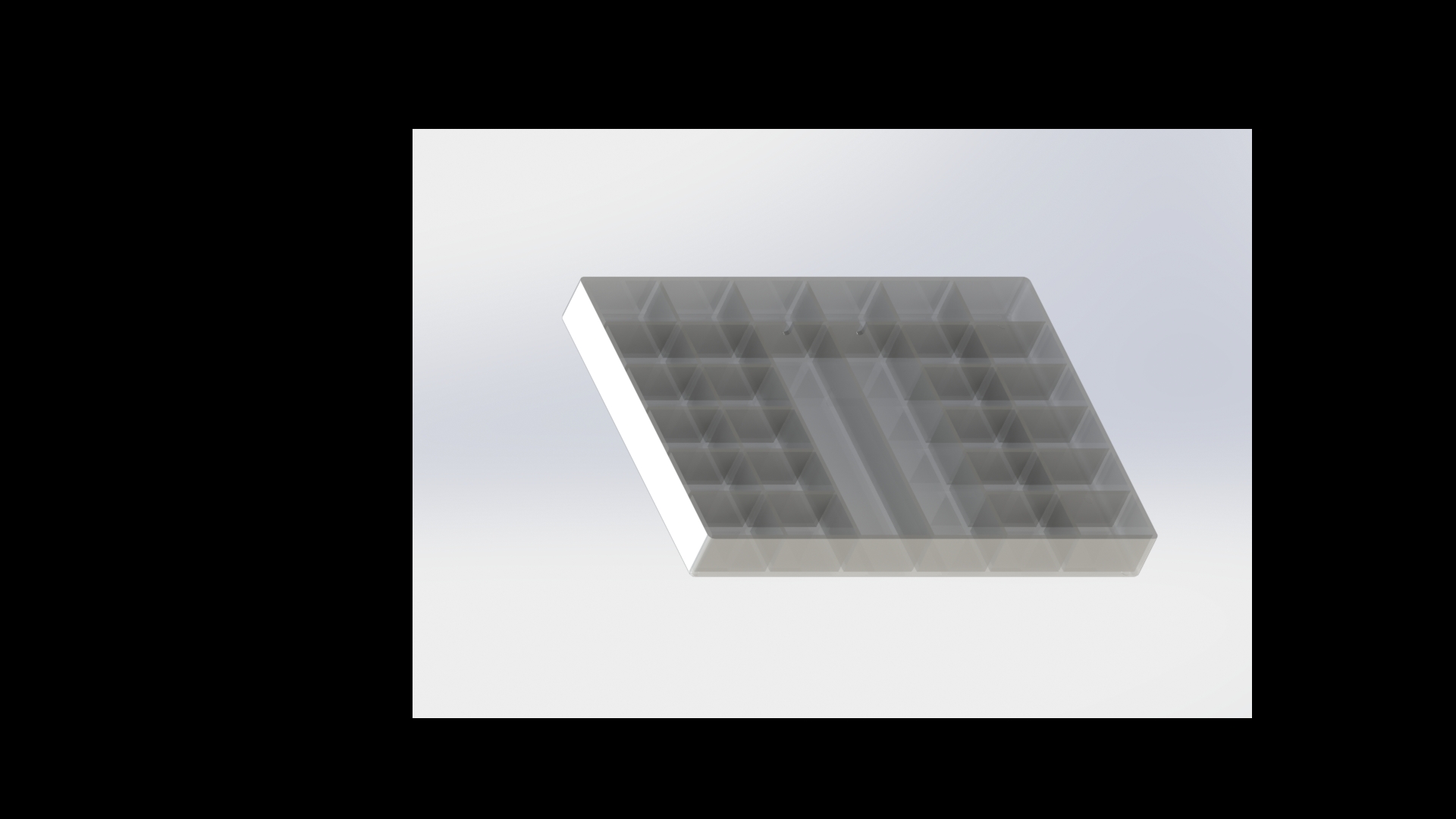

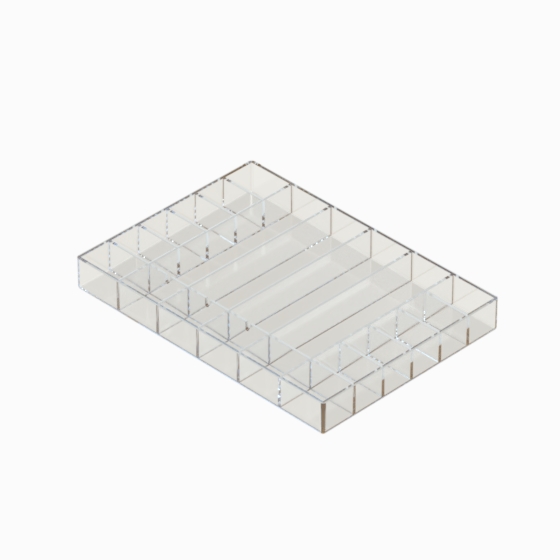

| Model | SCA28.0 |
| L (mm) | 175 |
| W (mm) | 125 |
| H (mm) | 20 |
| Color (Ral) |
- |
| Material | |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

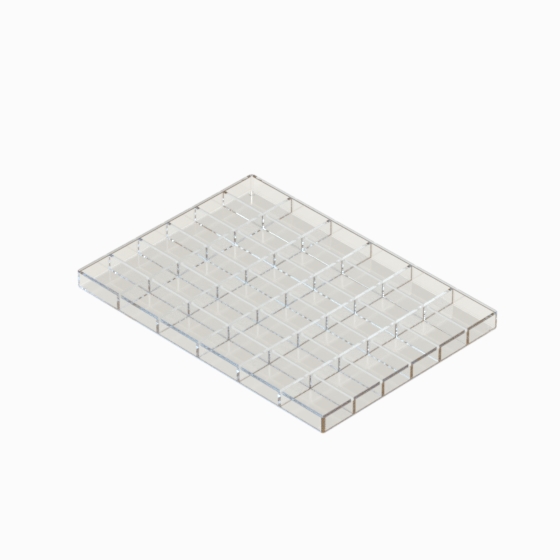

| Model | SCA36.0 |
| L (mm) | 175 |
| W (mm) | 125 |
| H (mm) | 10 |
| Color (Ral) |
- |
| Material | |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SC20.9 | 180 | 140,5 | 26 |
9004 |
N 1910 | - | - | - | - |
PDF DWG |
View
|
|
|
|
SC32.9 | 180 | 140,5 | 38 |
9004 |
N 1910 | - | - | - | - |
PDF DWG |
View
|
|
|
|
SC44.9 | 180 | 140,5 | 50 |
9004 |
N 1910 | - | - | - | - |
PDF DWG |
View
|
|
|
|
SC45.9 | 180 | 140,5 | 51 |
9004 |
N 1910 | - | - | - | - |
PDF DWG |
View
|
|
|
|
SC57.9 | 180 | 140,5 | 63 |
9004 |
N 1910 | - | - | - | - |
PDF DWG |
View
|
|
|
|
SC70.9 | 180 | 140,5 | 76 |
9004 |
N 1910 | - | - | - | - |
PDF DWG |
View
|
|
|
|
SCA20.0 | 175 | 125 | 20 |
- |
- | - | - | - |
PDF DWG |
View
|
||
|
|
SCA28.0 | 175 | 125 | 20 |
- |
- | - | - | - |
PDF DWG |
View
|
||
|
|
SCA36.0 | 175 | 125 | 10 |
- |
- | - | - | - |
PDF DWG |
View
|
