Description

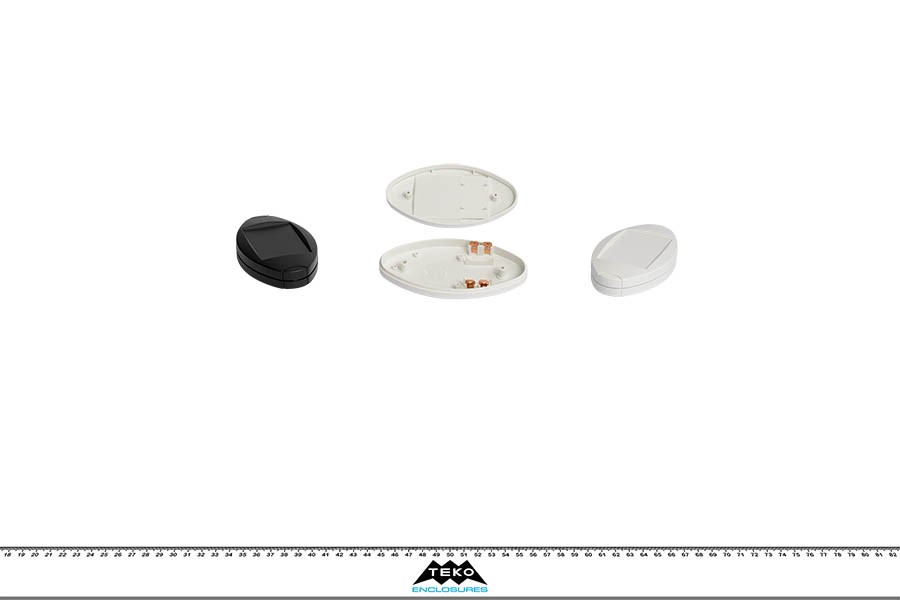

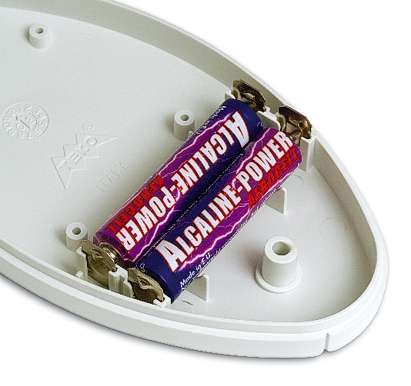

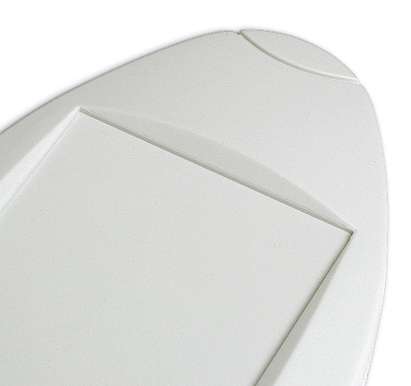

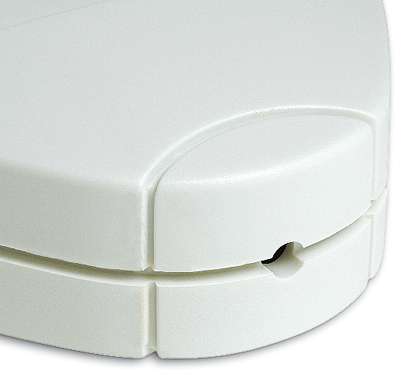

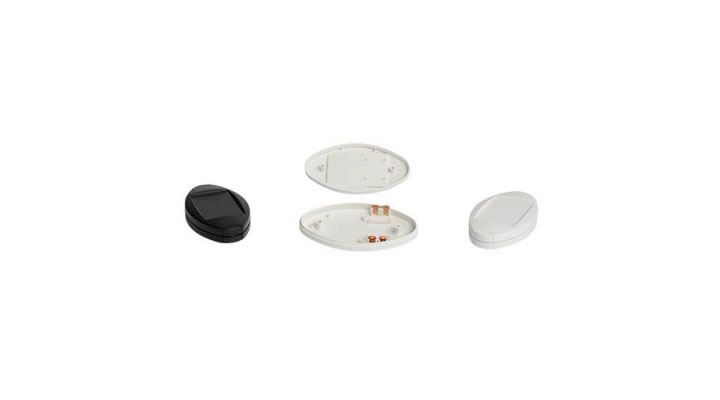

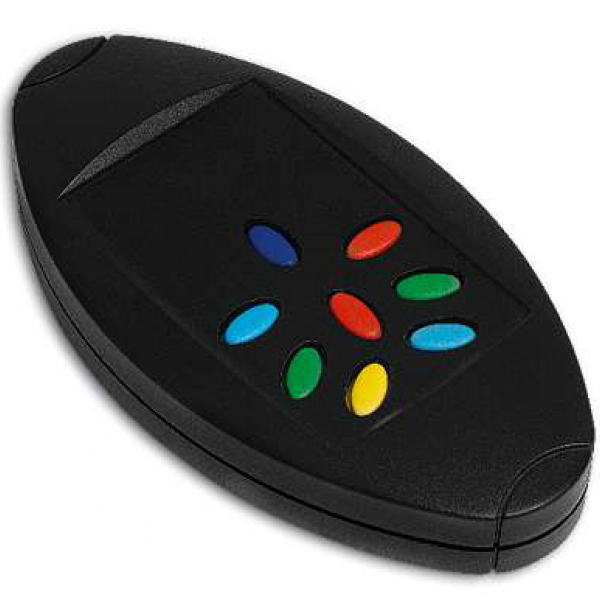

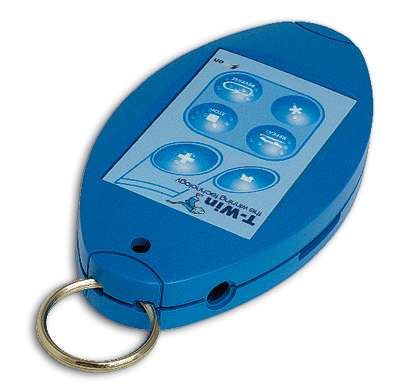

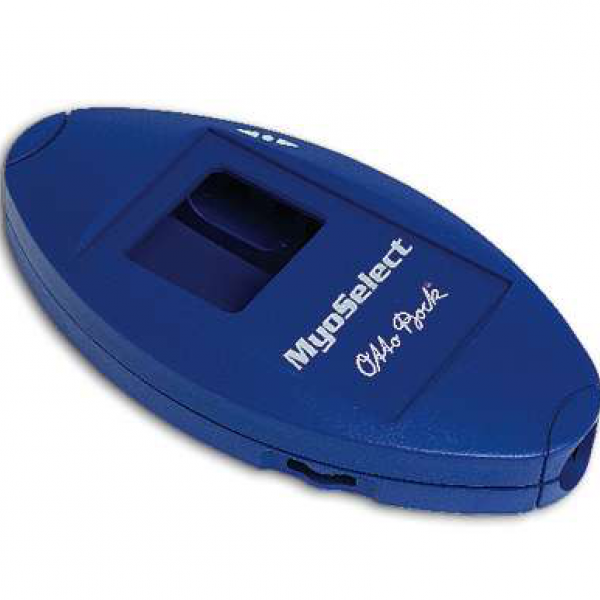

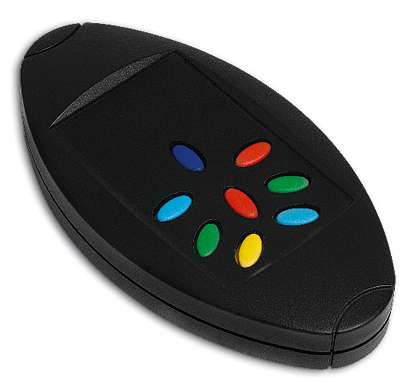

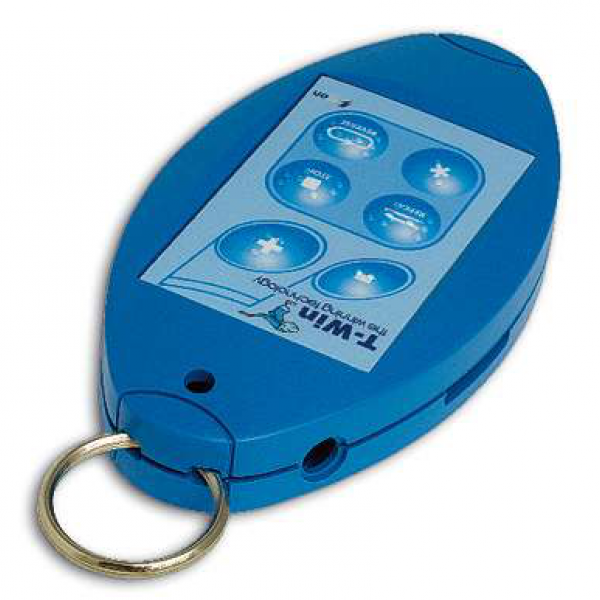

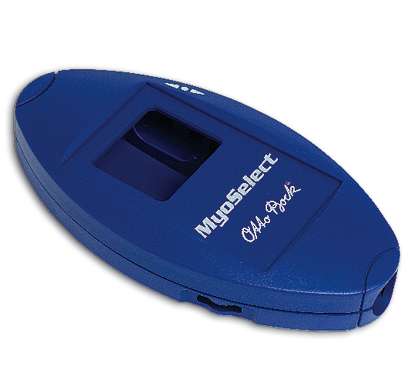

Ergonomic designed ABS enclosures with a recessed operating area for membrane keyboard. Matt surface finish. Integrated supports for two 1.5V microcells (AAA). The model “OVO-1IR” has a front opening for a LED. Closing by two screws.
Details
Products
| |
|---|---|

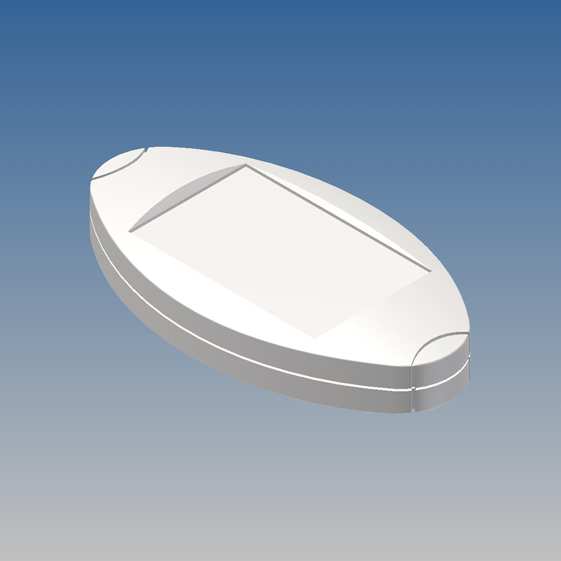

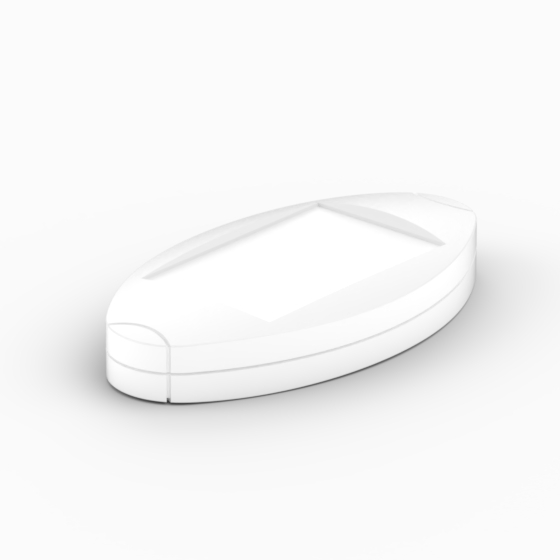

| Model | OVO-1.7 |
| L (mm) | 124,2 |
| W (mm) | 66,3 |
| H (mm) | 23 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | 65,5 |
| MAX PCB W (mm) | 57,3 |
| Screws | 2 |
| Battery | 2 x AAA |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

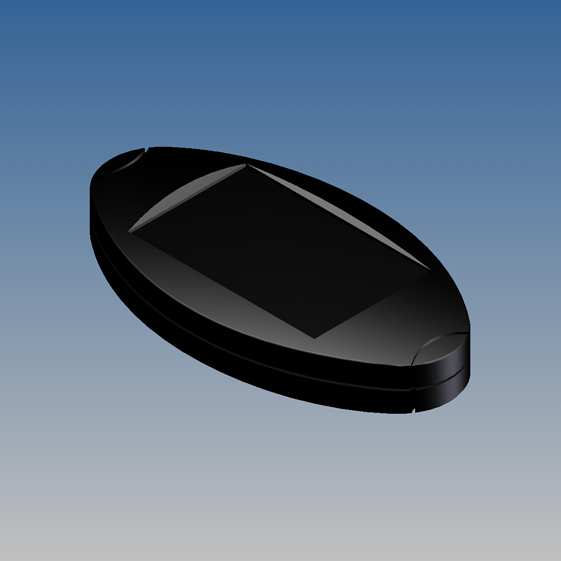

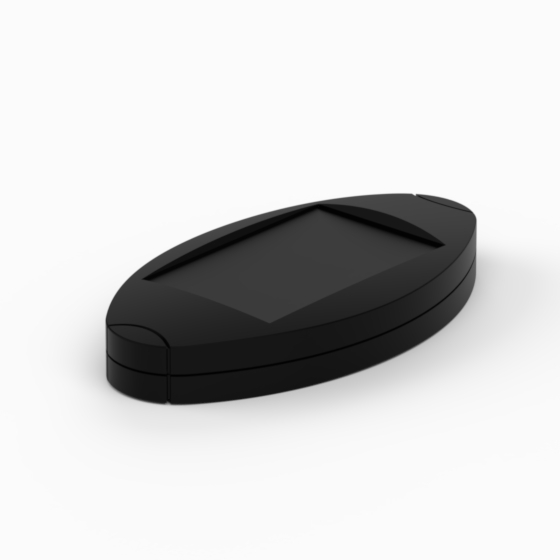

| Model | OVO-1.9 |
| L (mm) | 124,2 |
| W (mm) | 66,3 |
| H (mm) | 23 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 65,5 |
| MAX PCB W (mm) | 57,3 |
| Screws | 2 |
| Battery | 2 x AAA |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

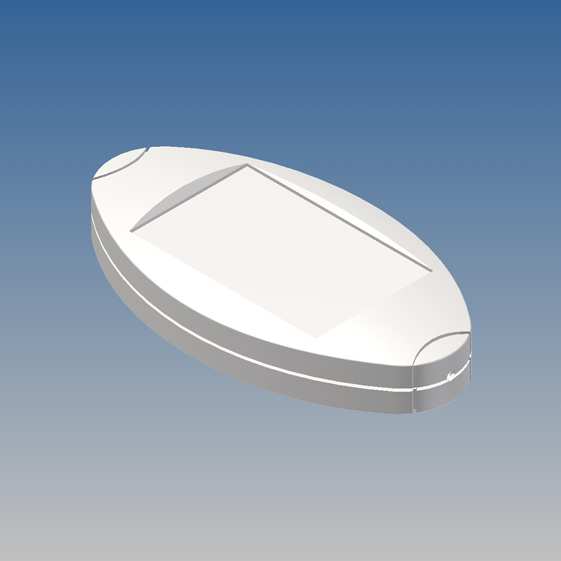

| Model | OVO-1IR.7 |
| L (mm) | 124,2 |
| W (mm) | 66,3 |
| H (mm) | 23 |
| Color (Ral) |
9002 |
| Material | L320 |
| MAX PCB L (mm) | 65,5 |
| MAX PCB W (mm) | 57,3 |
| Screws | 2 |
| Battery | 2 x AAA |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

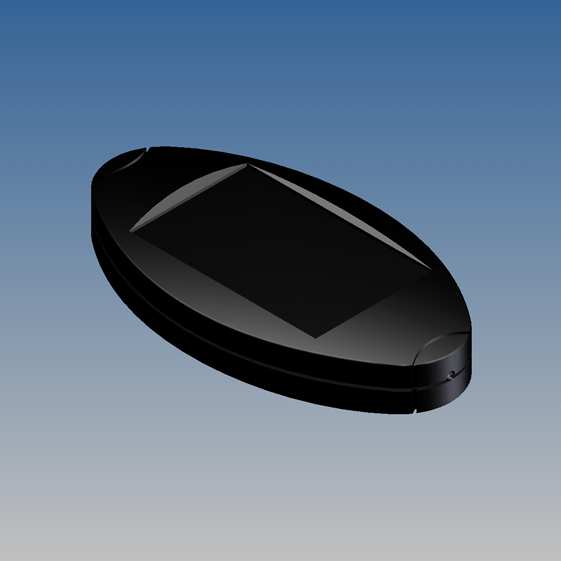

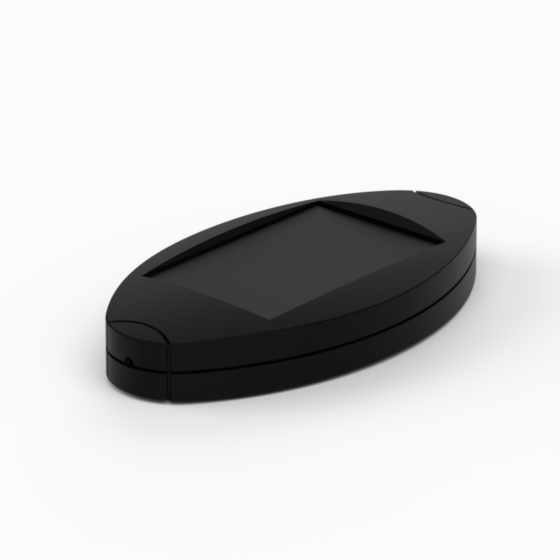

| Model | OVO-1IR.9 |
| L (mm) | 124,2 |
| W (mm) | 66,3 |
| H (mm) | 23 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 65,5 |
| MAX PCB W (mm) | 57,3 |
| Screws | 2 |
| Battery | 2 x AAA |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
OVO-1.7 | 124,2 | 66,3 | 23 |
9002 |
L320 | 65,5 | 57,3 | 2 | 2 x AAA |
PDF DWG |
View
|
|
|
|
OVO-1.9 | 124,2 | 66,3 | 23 |
9004 |
P2H-AT | 65,5 | 57,3 | 2 | 2 x AAA |
PDF DWG |
View
|
|
|
|
OVO-1IR.7 | 124,2 | 66,3 | 23 |
9002 |
L320 | 65,5 | 57,3 | 2 | 2 x AAA |
PDF DWG |
View
|
|
|
|
OVO-1IR.9 | 124,2 | 66,3 | 23 |
9004 |
P2H-AT | 65,5 | 57,3 | 2 | 2 x AAA |
PDF DWG |
View
|
